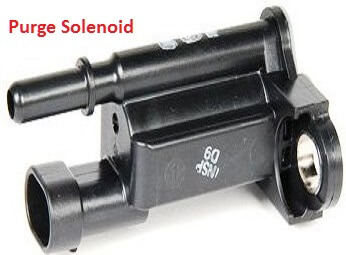

Evaporative emission system vent valve solenoid circuit

This code is a generic powertrain code. The vent control valve closes when the ECM performs the leak test of the EVAP system. This IS NOT a How-To video but more a definition and possible cause video. Meaning, there’s a malfunctioning component in. This solenoid valve responds to signals from the Engine Control Module ().

The evaporative emission system is designed to prevent the escape of fuel vapors from the fuel system. PCM then uses the LDP to seal the vent valve and pump. The vent solenoid is by the charcoal canister at the gas tank.

Online shopping from a great selection at Automotive Store. L engine did the code pop up right after u filled your gas tank up with the car running? When the ECM sends an ON signal, the coil in the solenoid valve is energized.

A plunger will then move to seal the canister vent.

The EVAP system therefore, totally eliminates fuel vapors as a source of air pollution. So, Sealing the fuel tank is not as simple as it sounds. When the fuel evaporates in the fuel tank, the vapor passes through the EVAP emission valve , through vent hoses or tubes to a carbon filled evaporative canister. This should be covered by the factory warranty.

Unfortunately, you need a fairly high end scan tool to force the computer to actuate the solenoids. There is air escaping from the gas tank. Often a problem with the gas cap, try tightening the cap. An ignition voltage is supplied directly to the EVAP Vent valve relay coil.

The PCM controls the solenoid by grounding the control circuit via an internal switch called a driver. At the bottom of this page is a complete list of the different codes that set and their definition. EVAP Vent Solenoid Control Circuit Conditions Cause Engine speed over 6rpm, system voltage from 6-18v, then the PCM detected that the Actual and Commanded state of the Vent Control solenoid control circuit did not match for over seconds. The primary function of the driver is to supply the ground for the controlled.

Silverado Vent Solenoid Replaced - Διάρκεια: 9:09. HXCHECK THE EVAP CANISTER PURGE VALVE CIRCUIT FOR AN OPEN IN THE. CV solenoid filter, and canister vent hose assembly for. Keep your vehicle’s emission control system in top-notch condition with superior Dorman replacement emission control parts. Manufactured from top-grade materials using advanced technologies, these parts are.

Evaporative emission (EVAP) system flow during. Mass Airflow circuit malfunction. Replacing a faulty purge control solenoid or valve. The scan tool displays the amount of ON time as a percentage.

The control module monitors the status of the driver. Battery voltage is supplied to the evaporative emission (EVAP) canister vent solenoid valve. The trick now is to drop the tank and access it. Hopefully this is the cure. At the appropriate time, the EVAP emission canister purge valve and the EVAP emission vent solenoid are turned ON, allowing the engine to draw a small vacuum on the entire evaporative emission system.

Disconnect the evaporative emission (EVAP) canister vent solenoid harness connector. EVAP Emission Control System Pressure Sensor Low Input. The PCM monitors the vacuum level via the fuel tank pressure sensor input.

At an appropriate time, the EVAP purge solenoid and the EVAP vent solenoid are turned on, allowing engine vacuum to draw a small vacuum on the entire evaporative emission system. Canister purge solenoid vent valve location. The code sets to let you know there is a problem with that. The site for Ford truck owners, by Ford truck owners. EVAP system with a vent solenoid , fuel tank pressure sensor and diagnostic test fitting.

NVLD solenoid is de-energized to seal the system 54. Car and Truck Fix It Right the First Time Issues and. I have yet to see number be the problem.

The Fuel Tank Pressure Sensor (FTPS) is an integral part of the monitoring system. The valve is closed during the EVAP system leak test. The vacuum hose comes from the throttle body to the Tee and on to the purge valve , the purgeline comes across the inner fender to the back firewall.

EVAPORATIVE EMISSION LINE DRAWING. Intake manifold collector. Purge or vent solenoid defective 4. Connector or harness wiring fault (open or short circuit ) l. EVAP control system pressure sensor. Most vendors appear to leave customers at the mercy of distributors or manufacturers without warning.

Fuel tank pressure (FTP) sensor (9C052). Also known as the vapor management valve (VMV). Would obviously seem to indicate some sort of electrical fault in the purge control valve circuit - just wondering if anybody knows the best way to test this? Is there a fuse for the PCV circuit that I can test with a multi-meter? Usually the problem with this code is an open vent solenoid valve.

The solenoid itself is a dealer part and probably easy to change, but just replacing the solenoid is no guarantee of fixing the code. Engine Coolant Temperature. The vent valve solenoid should be tested with someone with a scan tool and knowledge of the system.
